Henan Xinda Textile Accessories Co., Ltd. provides all kinds of cover accessories for woven fabric machine cover belt plate cover. D30 cover is used for 1511 single beam loom, 4112 (length) is used for 1515, 1515k and GA615 woven machine. At present, the d30 cover of 1511 is refitted from 4112, and they are used for weaving safety production guarantee textile accessories, which are made by one-time molding and pouring.

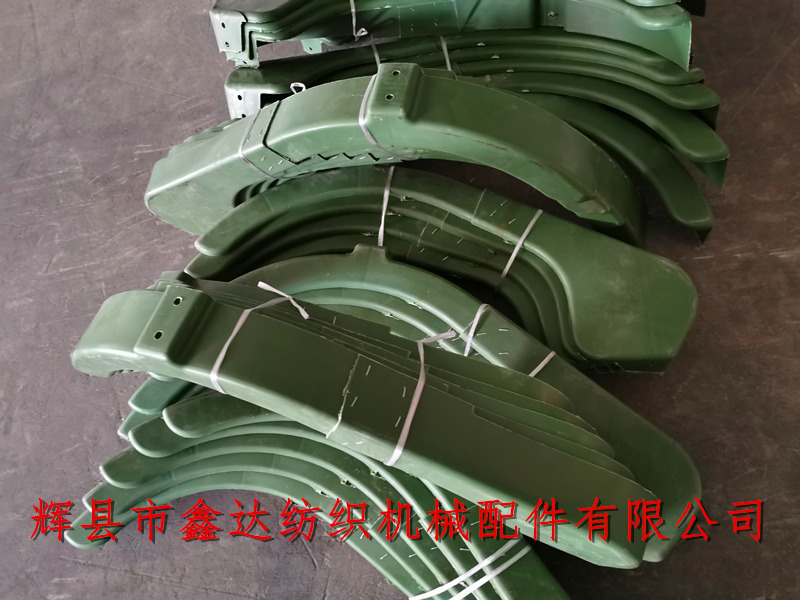

The cover of the V-belt pulley of the loom is divided into left hand and right hand according to the loom. The material is industrial nylon, color: green, the center distance of the two pairs of fixing holes 1511-d30 is 420mm, the center distance of the fixing holes 1515-4112 is 572mm, the radius of the arc semicircle is r = 267mm, and the diameter of the screw holes of the two accessories is 9.5mm.

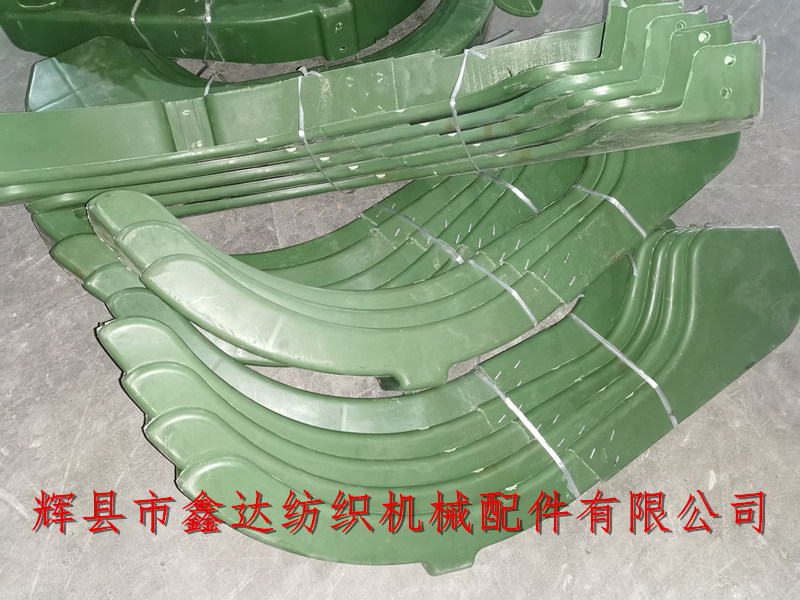

On the left side of the figure above is the left mobile phone, on the contrary, on the right side of the figure is installed on the right R loom. The splicing is made up of the 4112 of the mainframe after being cut off.

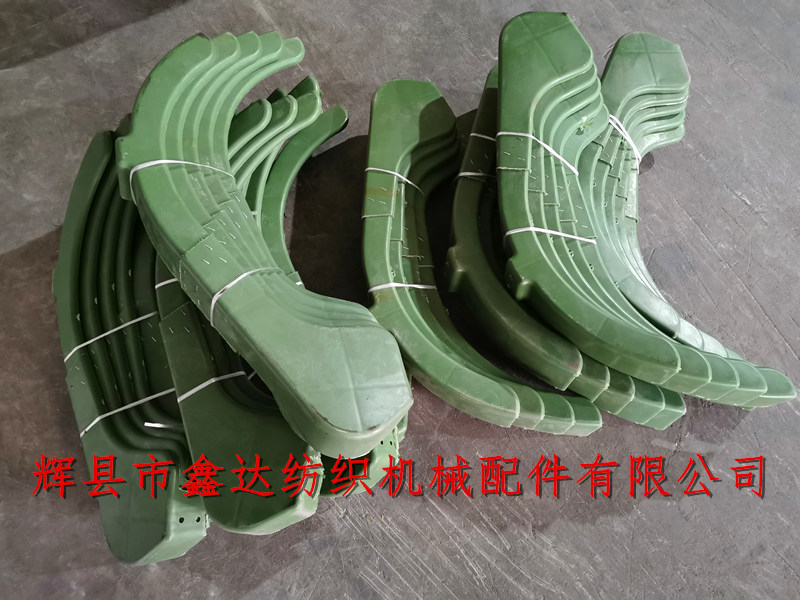

The upper part of the loom cover is shown in the figure above, and there is no fixing hole at the tail. 5 for each bundle, starting quantity: 20, delivery time 7-10 days. Our company provides customized plastic textile accessories, nylon loom parts processing and wholesale services.

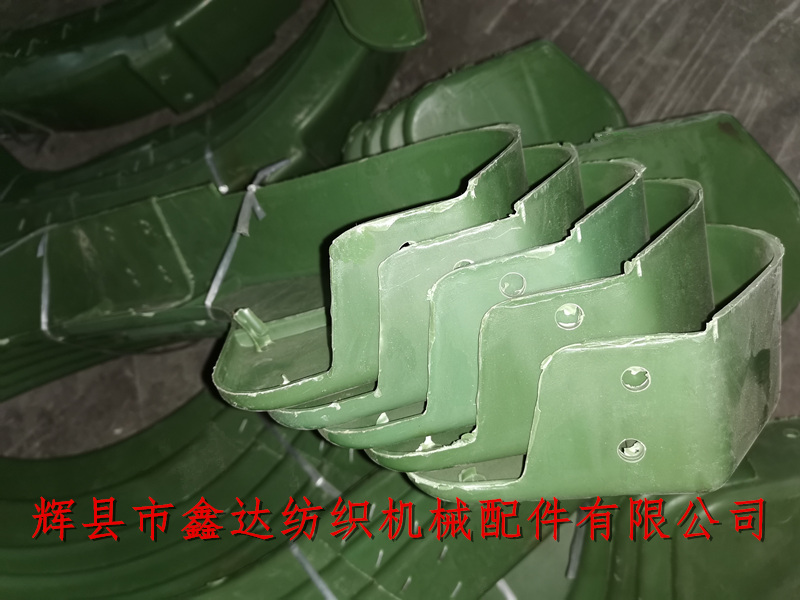

The above figure shows fixing holes d30 and 4112 of loom cover, which are screw holes fixed on the motor base by d33 feet. Xinda plastic textile equipment sells nylon casting accessories of shuttle loom and common textile spare parts. If you want to buy loom cover, belt pulley cover, shuttle textile accessories and other products, please contact our company for consultation and negotiation!
