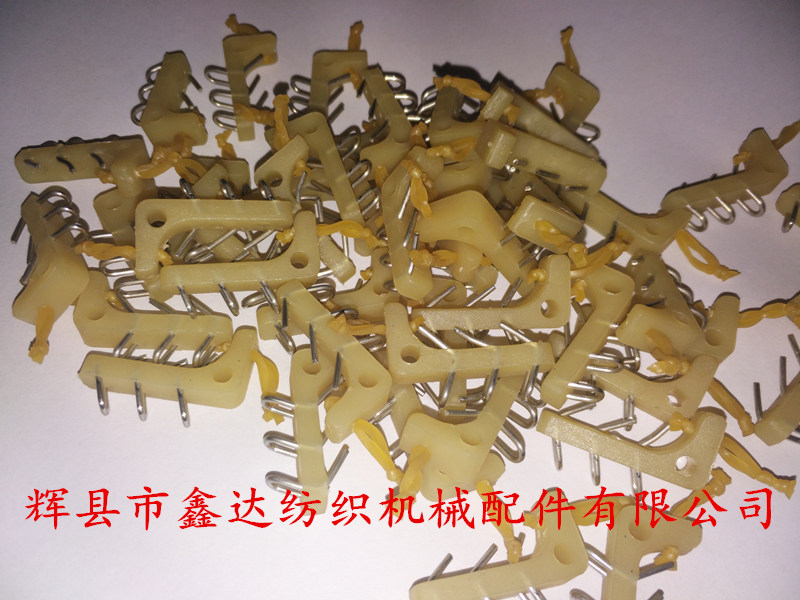

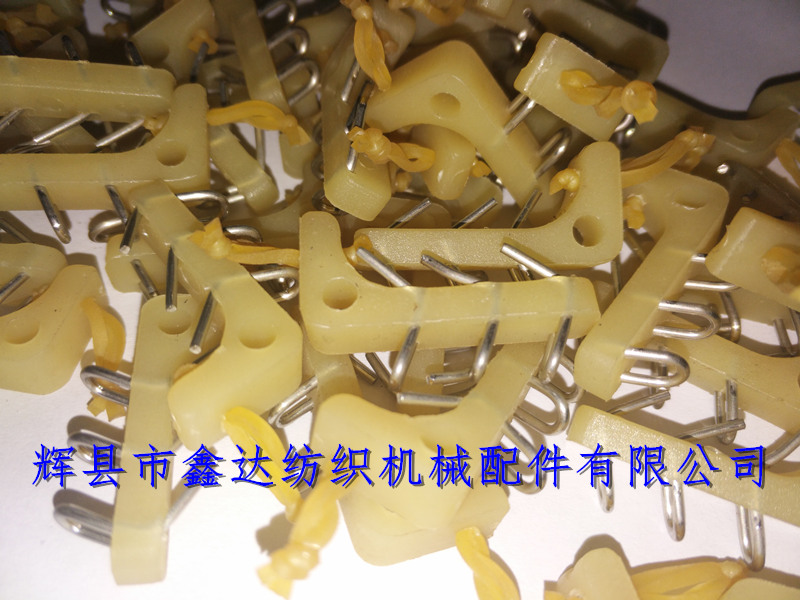

Xinda textile accessories provide various glass shuttle accessories all the year round.Nylon bell, stainless steel glass fiber bell, nylon shuttle parts, Three stainless steel coils are fixed on nylon flexible, and rubber bands are installed at the tail.Stainless steel bells are mainly used on shuttles of glass fibers (glass fibers) and silk weaving machines, and are processed by nylon injection moulding as a whole.
The color of textile flexible products is light yellow, the diameter of stainless steel wire is about 1.2 mm, the diameter of pin screw fixed hole is 5 mm. Nylon flexible products are textile nylon accessories, glass fiber machine accessories, glass fiber nylon shuttle assembly processing products.

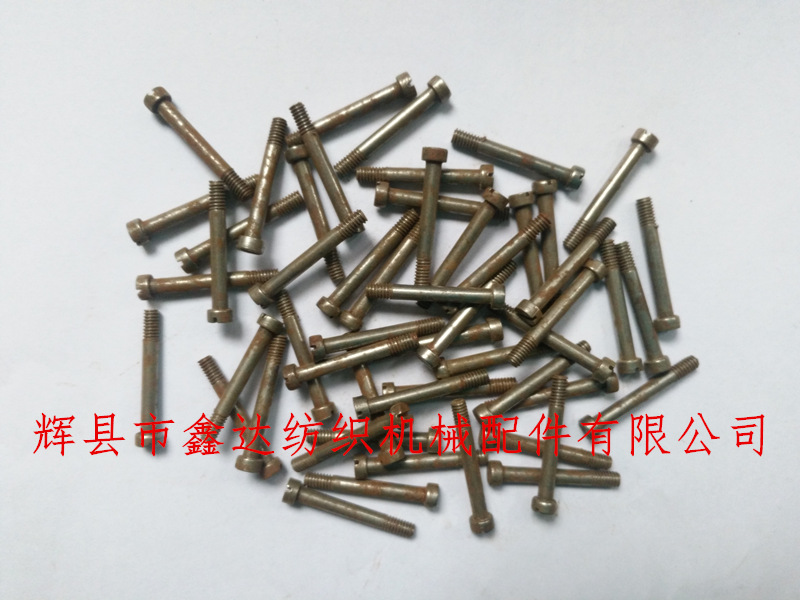

Textile fiberglass bells (Ling) are 100 pieces in each package. The contra-pin screw (fixed on the shuttle through the Ling hole) is shown below.
According to the diameter and length of pin screw, there are many specifications. The corresponding products such as red steel paper flexible, lengthened nylon flexible, single ceramic ring flexible bell and so on need to use different specifications of pin screw.

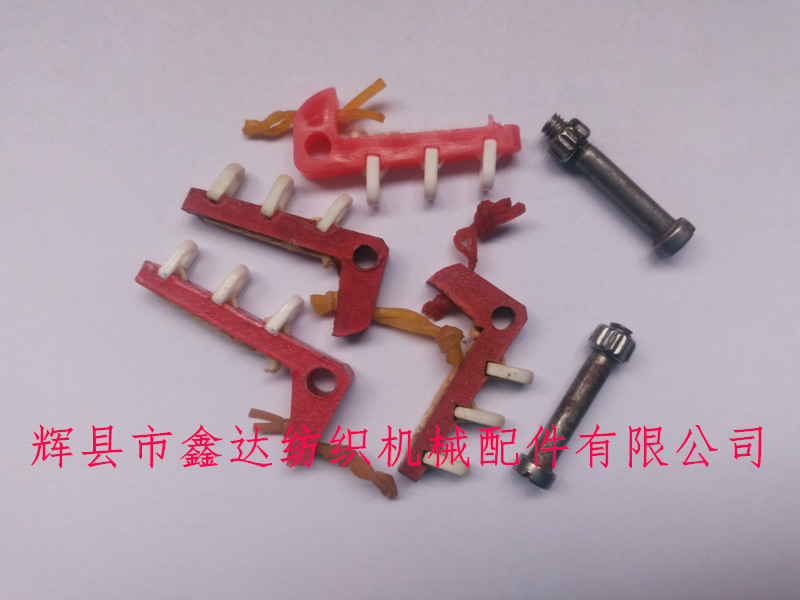

The red nylon flexible tail in the picture above is shorter and thinner than the yellowish one. It uses three white ceramic ring guide yarns. The flexible yarn is designed for export wooden shuttles and nylon shuttles. It is mainly used for silk shuttles or short nylon shuttles. The shuttle needs to be hollowed out in the front of the shuttle when using the flexible yarn, leaving enough space for flexible stretching to ensure yarn drawing, threading and repeated stretching. Flexibility.
