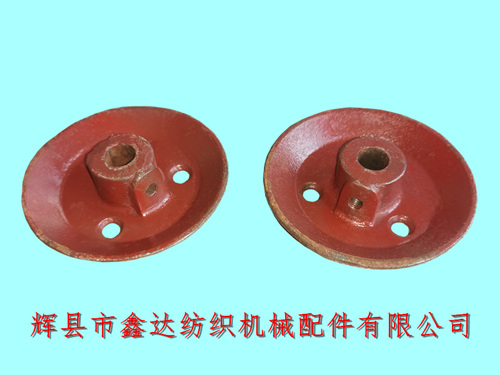

Huixian Xinda Textile Machinery Parts Co., Ltd. provides T54 Drum Stop Plate 1515/11 Multi Arm Part, T54 drum stop disc textile accessories 1515/1511 multi arm accessories. When using the T54 drum stop disc on the 1511 multi arm loom, it is connected to the T34 drum shaft and T35 wooden drum. When using the 1515 multi arm loom, it is fixed on the 5113 drum shaft and in contact with the 5114 drum. Its outer diameter is 83mm, the diameter of the middle circular hole is 12mm, the outer diameter of the middle circular cone is 25mm, and the three circular holes next to it are used to install countersunk wooden screws on the side of the drum.
The screw holes on the side of the T54 drum stop plate are M6. Each multi arm loom uses 2 T54 drum stop plates, and some double drum multi arm looms use 4 pcs.
The material of the T54 drum stop plate for multi arm parts is ductile iron (painted red). Due to the decreasing use of multi arm parts in China, the inventory of such textile accessories has sharply decreased. Therefore, when purchasing T54 drum stop plate textile accessories 1515/1511 multi arm accessories, bulk orders are required to carry out sanding and casting of blanks.
The packaging is 20 pieces per string, with a minimum order quantity of 500 pieces. For other multi arm components, if you need to purchase, you can contact Mr. Yang from our company for consultation. We welcome textile colleagues to call us for further discussion.
