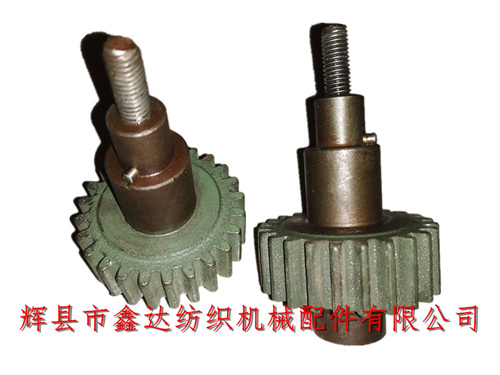

Our company provides ethnic minority loom accessories L00-4 core pinion, which is a combination of L71 bolt, L32 gear and steel pin. It is installed in the middle of the hanging foot of l30xl31 pinion of ethnic minority loom (hada). During installation and use, missing teeth are not allowed, broken teeth are not more than 1 / 3 teeth, gear thickness is not more than 1 / 3, and the weight of a single core pinion is 0.7 kg, One set is used for each loom, regardless of left and right hands.
The shaft diameters from top to bottom in the above figure are: 18mm (installing weft density change gear), 28mm (installing L31 core foot), 27.6mm (installing L30 pinion hanging foot). The winding gear of Xinda loom, the bridge gear of ethnic minority loom and the accessories of Muzi loom are made of HT15-33 gray iron.
1515 loom accessory L00-4 belongs to the take-up part and is the key accessory of the bridge device for controlling weft density of the loom. The number of teeth is 24, the diameter pitch is 10, and the total length of the core pinion of the textile machine is 115mm.
Xinda Textile Machinery Accessories Co., Ltd. has long provided GA615 loom parts, loom accessories and minority weaving machine spare parts. We have 20 years of sales experience in textile accessories. We cooperate with major domestic manufacturers with wide channels and worry free supply. We are committed to solving the problem of supply of various accessories for cotton mills.
