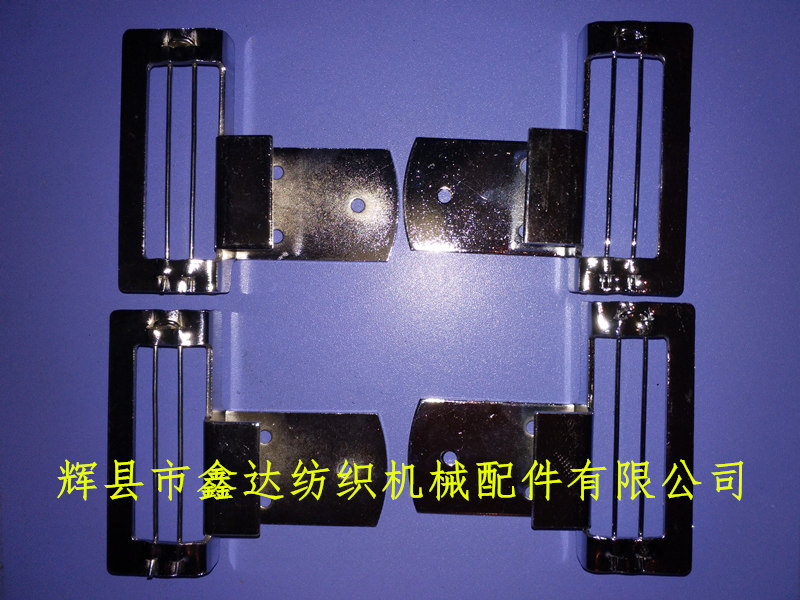

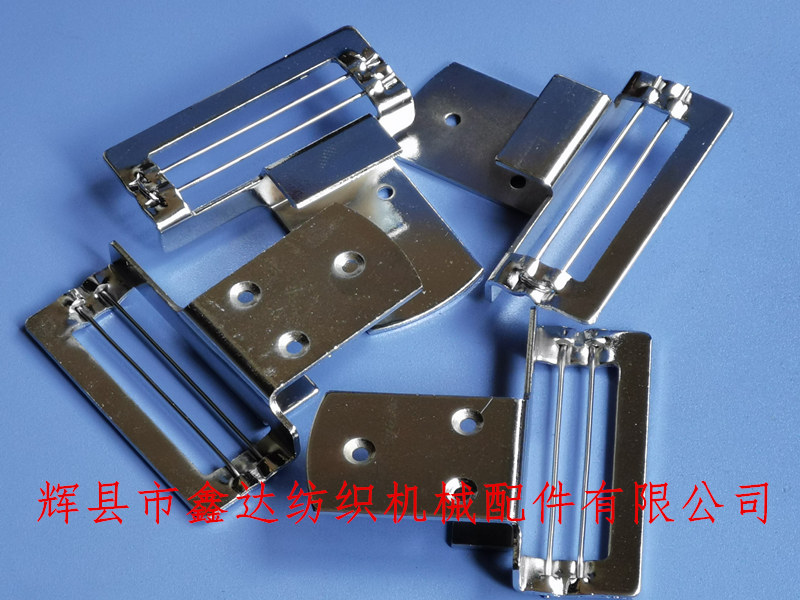

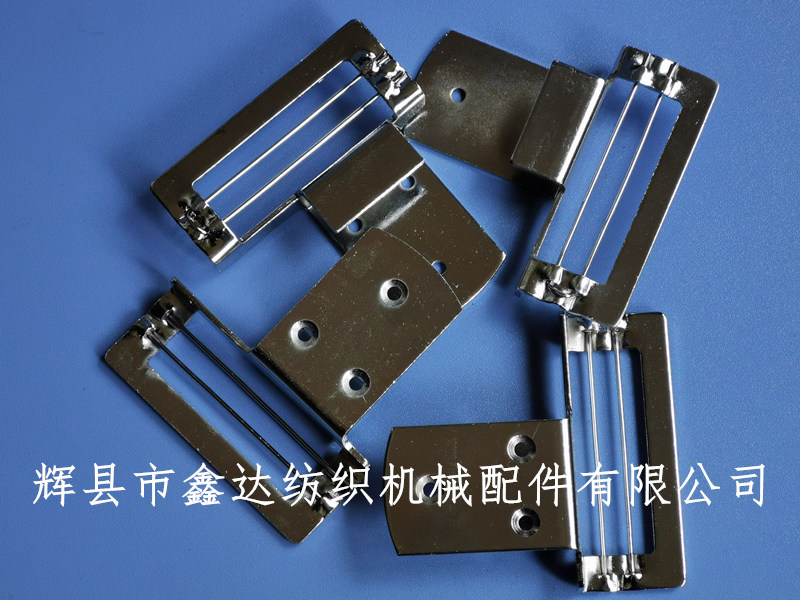

Our company provides various chrome-plated, nickel-plated, galvanized textile Hardware stamping parts, textile machine gantry gear J00-2 accessories, shuttle textile machine accessories, K88 loom wrapped iron, K6 mat iron, textile machine gantry gear by J31 gantry gear main body and J50 spring steel wire composition, double row U-shaped steel wire diameter is 1.8mm, J31 gantry gear by A3 material stamping and bending. Type B, bending die standard, three holes are accurate, the surface is galvanized.
The gantry gear fittings of the textile machine are used in the shuttle changing induction device of the loom, assisting the automatic shuttle changing of the loom, packing: transparent bags, 10 bags each, divided into left and right hands, with a height of 97 mm.
The gantry gear is fixed on the shuttle box back plate Q3X4 or 3303*3304, fixed by three 4X16 wooden screw, behind the shuttle box 3310, the distance is 2+0.5mm, the angle is 86.5 degrees, the plane is lower than the movable back plate (3304) 0.8+0.2mm, the distance between the lower side frame and the upper edge and the shuttle board is 11~13mm, which is closely connected with the shuttle box movable back plate of the loom and is in the reed position. The center of the groove of frame wood Q1 or 3222.
Textile gantry gear, textile machine accessories J00-2, weaving machine hardware plating accessories, textile galvanized products, please contact our company to purchase, sincerely look forward to your presence!
