Huixian Xinda Textile Machinery Parts Co., Ltd. provides 3320 Shuttle Box Cover Plate For 1515 Loom. The shuttle side is the automatic shuttle changing side of GA615 and 1515 weaving machines. GA615-3320 shuttle box cover is divided into left and right hands, with a total length of 50 centimeters. The inner width of the rod groove is 15 millimeters and the inner length is 44.5 centimeters. Each weaving machine uses one 3320 shuttle.

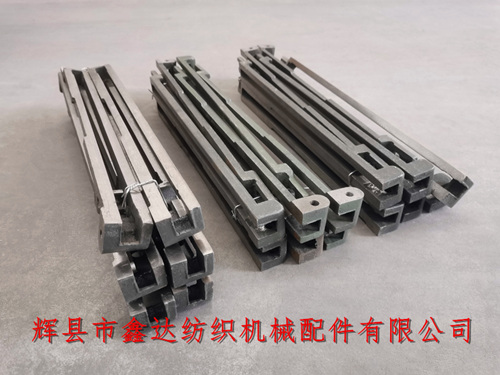

As shown in the above figure, the packaging of 1515-3320 or GA615-3320 shuttle box cover plates is 10 pieces/bundle (same hand), and the weight of a single cover plate is about 0.9 kilograms. The conventional accessories used for the 75 inch loom are the same as those for the 56 inch loom, but there are 75 inch and 56 inch accessories with different widths. Their lengths vary, but the part numbers are the same.
The material of the cover plate is gray pig iron HT15-32, and the screw fixing hole on the smooth side is M10. On the 1515 loom, it is connected to the K28 shuttle box cover plate and control wood support foot, and the other side is connected to the K201 shuttle box cover plate support foot;
On the GA615 model loom, it is connected to GA615-2101 (Shuttle box cover foot support) and 1515K-7512. If you need to purchase GA615 loom accessories, textile accessories, shuttle box cover plates, loom accessories, 75 accessories, shuttle warehouse parts and other products, please contact our company. We sincerely welcome your visit.
