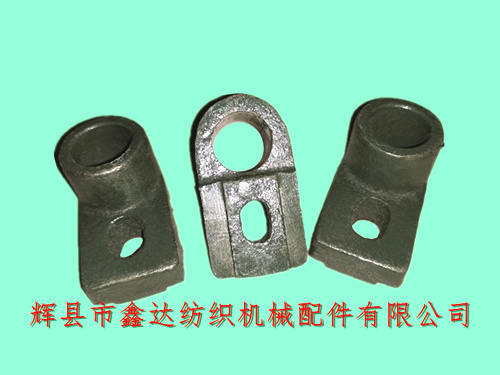

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511/1515 loom accessories, K45 control wood supporting feet, textile machine cast iron accessories. K45 loom supporting feet are connected with reed feet K2, control wood Q17 or 3311. The number of each machine is 1pcs. The inner hole diameter of K45 control wood supporting feet is 18mm, the overall length is 54mm, the width is 29mm, and the height is 29mm. The chute on the back of the supporting feet is convex, and the width is 15.5mm.
Some accessories of 1515 and 1511 looms are the same and can be used interchangeably. M8*18mm fixing screws are used on the supporting feet. The inner length of the screw hole is 14mm and the inner width is 9mm. The material of pig iron accessories of the textile machine is HT15-33.
K45w controls the packing method of wooden supporting feet: 20pcs in each string, regardless of left and right hands. There are hundreds of types of accessories for the old shuttle loom. The loom equipment (plain weave) of different brands has the same structure. The horizontal pieces involving the machine door are distinguished according to the metric and British specifications.
The accessory products of the control wood are mainly the automatic shuttle changing loom of the auxiliary loom. After decades of continuous improvement on the basis of G611, the structure of the mechanical device is relatively stable and reliable.
Textile machinery accessories K45 control the single weight of the wooden supporting foot is 0.09kg. If textile manufacturers need to purchase loom accessories, control wood, loom feet, 1515 loom spare parts, please contact Mr. Yang of our company for details!
