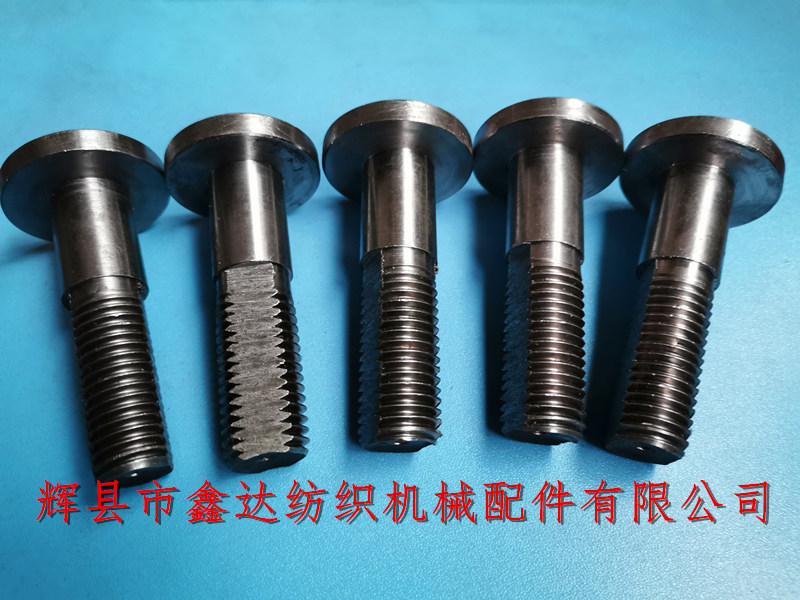

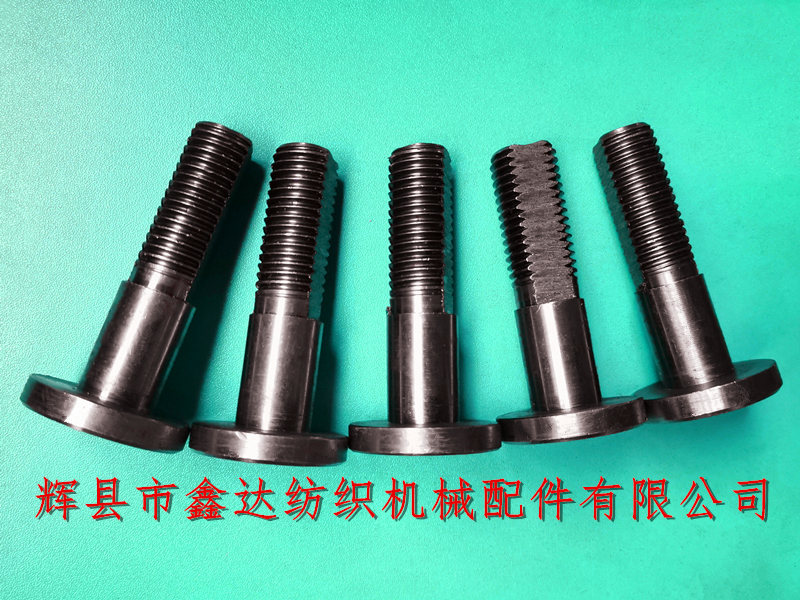

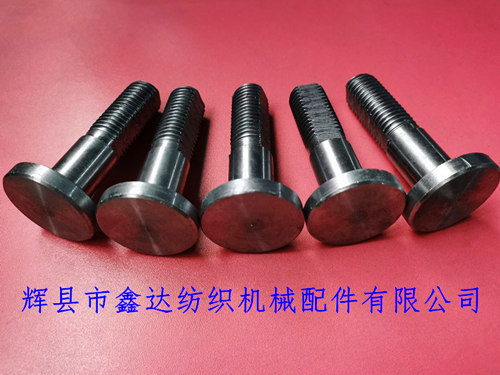

The screw mandrel F13 for Xinda shuttle throwing rotor is installed on the shuttle loom of 1511, G611, 1515, GA615 and other models.Shuttle Loom Parts Picking Bowl Stud F13,The rotor mandrel has a total length of 85mm, the outer diameter of the round table is 40mm, the material is steel 20, and it is connected with the rotor disc F8. It is a screw mandrel accessory of the textile machine and a shuttle throwing part of the old-fashioned loom. Each loom uses two pieces.
The thickness of the flat part of the spindle is 15mm, the diameter of the spindle of the screw core for the shuttle rotor is 20mm, and the thickness of the round table is 7mm. Forging technology of small textile steel parts, Shuttle Loom Parts Picking Bowl Stud F13,machining technology of screw core of loom and polishing technology of all kinds of hardware steel parts are the key to the precision of textile accessories.

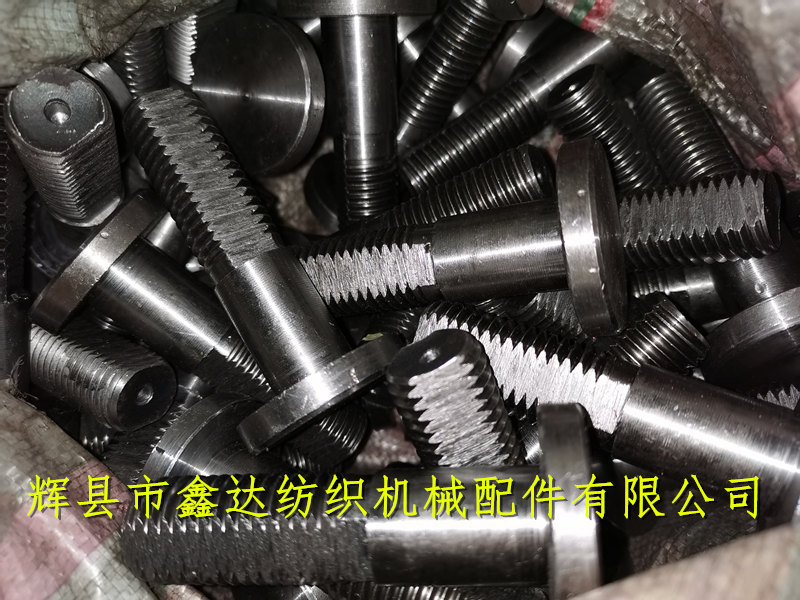

The package of the loom's mandrel is: woven bags, Shuttle Loom Parts Picking Bowl Stud F13 100PCS for each bag. The configuration of the shuttle feeder (drop shuttle) determines the principle of automatic loom's weft transport. Generally, the shuttle feeder with shuttle is distributed under both sides of the loom. The explosive force and time node control of the shuttle feeder are realized by using the lever principle.
If you need to buy shuttle rotor, textile mandrel, loom accessories - please contact our company for consultation, all specifications of loom shuttle parts are complete, special models can also be customized.
