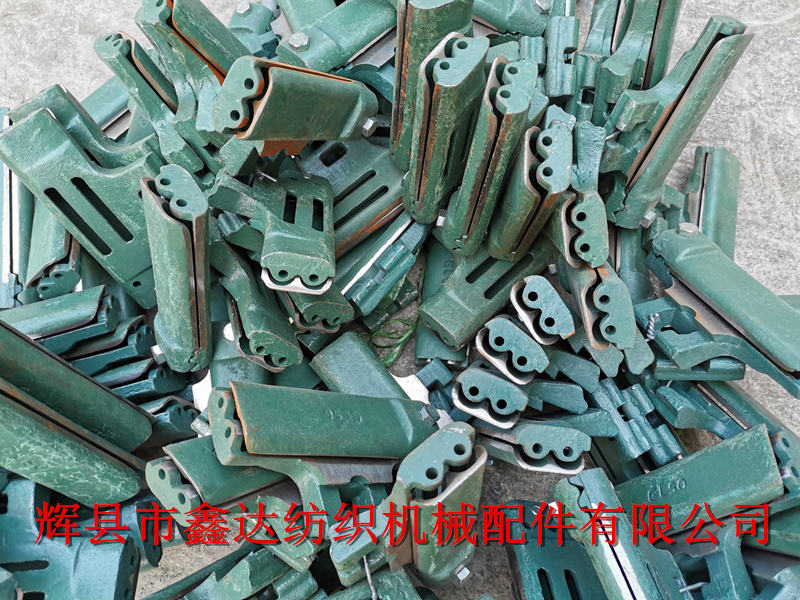

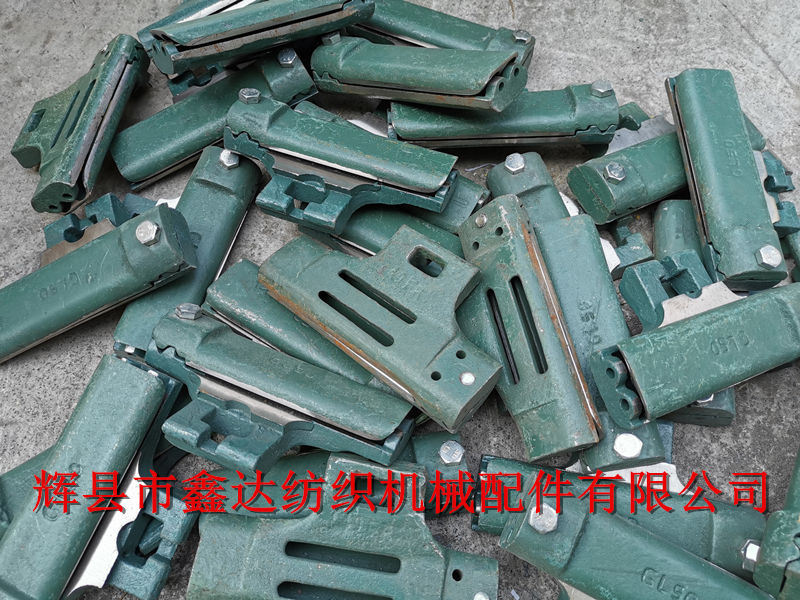

Henan Xinda Textile Accessories Co., Ltd. specializes in providing 1511 loom side support box (extension box base) accessories, which is also known as side support box, fixed on both sides of the machine cloth surface, composed of base and side support cover, part No. L49 (base) xl50 (side support cover). The length of the side bracket is 138mm, which is connected with the L44 extension bar of the loom.
The two sides of the cloth surface pass through the inner cavity of the edge support box, and the cloth surface is held tight by the edge support spindles, and the cloth is passively rotated according to the rolling action in the weaving process. Each loom uses one set of edge support box.
The l70t bolt is fixed at the tail gap of the loom side support box accessory. The photo of L70 is as follows:

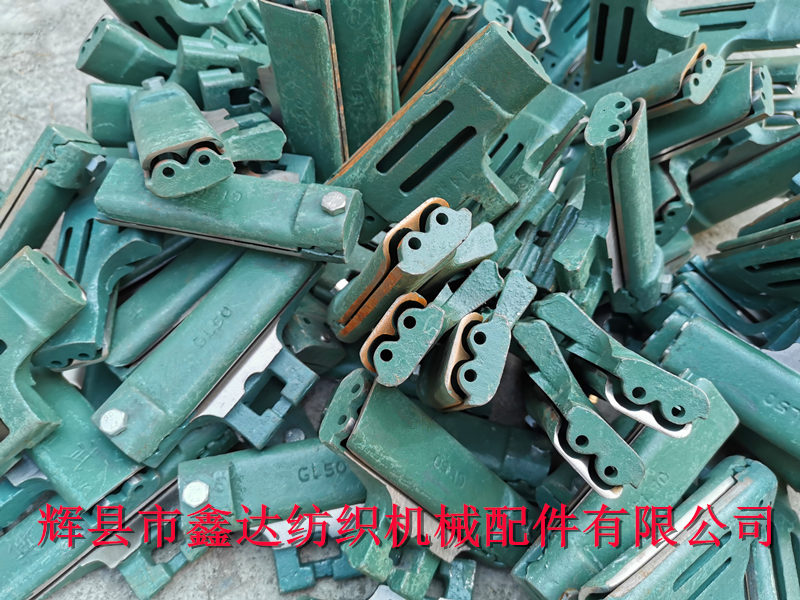

The side support box (extension box) is made of pig iron HT15-33, which is divided into switch side and shuttle changing side. L49x50 is located on the switch side of the loom. L46xl47 is used on the shuttle changing side, and the side bracket on each side is divided into left and right hands.
1511 side support box parameter, 44 extension box processing, 56 inch loom extension base price, please contact Xinda Textile accessories, sincerely welcome your presence, the default payment to arrange production, agreed delivery time.
