Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile machine leather parts R17 brake lever suspension hammer leather cow belt strip. The weaving machine cow belt strip R17 is mainly used to suspend the brake lever heavy hammer I7, which is connected to the F217 brake lever. Each weaving machine uses one R17. The external dimensions of R17 belt are: total length 136mm, width 18.5mm, thickness 3mm, circular hole diameter 5mm, square hole length 6mm, and center to center distance of 104mm.

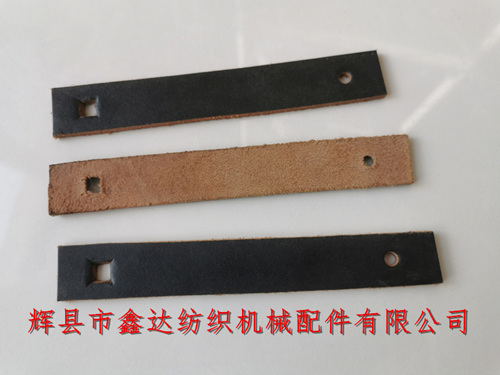

The above picture is a front view of the R17 brake lever suspension hammer leather, with circular and square holes located in the middle of the belt. Their packaging is: transparent self sealing bags, 50 pieces per bag.
Textile R parts, textile machine leather parts, and weaving machine leather accessories are mainly used for connecting or rubbing various accessories on weaving machines. According to the elasticity of the material itself, it is applied in different positions such as the hoist, tension control, braking, shuttle box, etc. of the 1511/1515/GA615 weaving machine.
The weight of a single R17 brake lever suspension hammer leather is approximately 6 grams; If you need to purchase textile leather parts, textile machine leather, R17, For brake lever accessories, leather belts, and other leather accessories, please contact Mr. Yang from our company for negotiation or consultation.
